P0 P6 P5 P4 P3 QUALITY LEVER6205LLU 6205 6205LLU 6205Z 62052Z 6205N 6205ZN CHROME STEEL Deep Groove Radial Ball Bearing
Product introduction:
Deep groove ball bearing (GB/T 276-2003) formerly known as single-row radial ball bearing, is the most widely used rolling bearing. It is characterized by small friction resistance, high speed, can be used to bear radial load or radial and axial simultaneous action of the combined load on the machine parts, can also be used to bear axial load on the machine parts, such as small power motor, automobile and tractor transmission, machine tool gearbox, general machines, tools, etc
Product Parameter:
| Product model | 6205LLU | specification | Standard - Dust proof | Inner and outer ring material | steel | Oil lubrication speed | 15000 |
| Product type | Deep groove ball bearings | Rolling element material | steel | Size specifications | metric system | Model | 6205LLU |
| General shipping date | Inquiry | Seal part structure | Open type | Inner diameter d | 25 | Internal clearance symbol | CM |
| Load direction | radial | Internal clearance symbol | CM | Outer diameter D | 52 | Accuracy (JIS) | Level 0 |
| Raceway wheel shape | Ball | Accuracy (JIS) | Level 0 | Width B(mm) | 15 | Grease lubrication speed | 13000 |
| PRODUCT DEFINITION |
| Brand | NTN |
| d - Internal diameter | 25 mm |
| D - External diameter | 52 mm |
| B - Bearing/Inner ring width | 15 mm |
| rs - Min fillet radius | 1 mm |
| Radial clearance class | CN |
| Mass | 0,128 kg |
| PRODUCT PERFORMANCE |
| C - Dynamic load | 15,5 kN |
| C0 - Static load | 7,85 kN |
| Cu - Fatigue limit load | 0,55 kN |
| f0 - Coefficient | 13.9 |
| Nlim - Grease lubrication limit speed | 8900 tr/min |
| Tmin - Min operating temperature | -25 °C |
| Tmax - Max operating temperature | 110 °C |
| ABUTMENT |
| da min - Min shoulder diameter IR | 30 mm |
| da max - Max shoulder diameter IR | 32 mm |
| Da max - Max shoulder diameter OR | 47 mm |
| ra max - Max shaft & housing fillet radius | 1 mm |
----6200 6201 6202 6203 6204 6205
-------LLU ZZ DDU 2RS VV M N
------P0 P6 P5 P4 P3

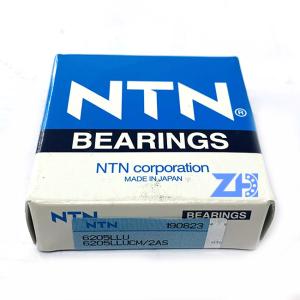

Product picture
FAQ
Q : Do your product have quality guaranteed?
A : Sure.First of all, we have a group of responsible workers.However, if the product quality problem occurs
within one year, we will replace the goods for you or refund your money.
Q : Can your company provide sample?
A : Yes, if you want to check the goods, we can provide sample.
Q : How can i trace my order ?
A : We‘ll send you tracing no. by email and upddated details to you in time
Q : What should we do if we can't find what we want on your website?
A :
You can email us the descriptions and pictures of the products youneed,we will check whether we have them. We develop new itemsevery month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this itemfor bulk purchasing.
Q : Why choose us?
A :
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---We will have a ready - made product ready within 2 minutes of receiving the
quotation
